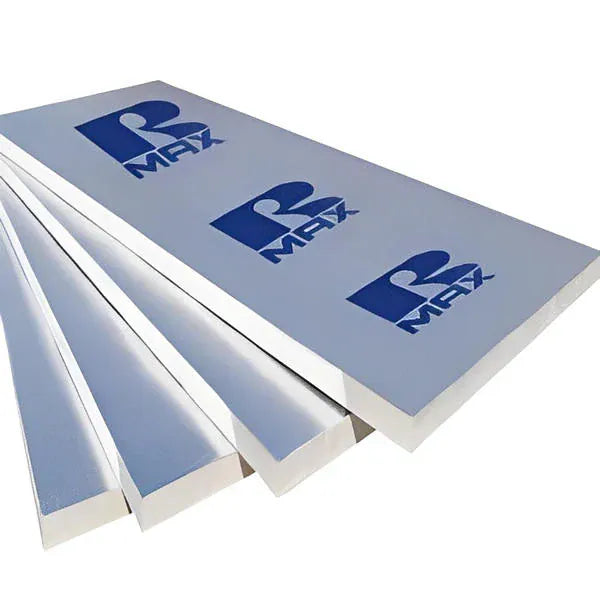

Rmax ECOMAXci Air Barrier 4ft x 8ft Insulation Board - All Thicknesses
Adding product to your cart
Est
Delivery between
and
.
Estimated Delivery Time 5-7 Working Days
Rmax ECOMAXci® FR Air Barrier is an energy-efficient thermal insulation board composed of a closed-cell polyisocyanurate (polyiso) foam core bonded to glass fiber reinforced aluminum foil facers on both sides. Glass fiber reinforcement on both faces of the board offer enhanced durability, dimensional stability, and fire performance. The printed side, exposed to the exterior, has a robust embossed 12mil facer with an aluminum reflective surface and clear coating for limited protection against oxidation ensuring Jobsite security and enhanced radiant heat protection.
| Thickness | Sq/Ft Per Pallet | Sheets Per Pallet | Minimum Order |
|---|---|---|---|
| 0.75" | 1920 | 60 | 6 Pallets |
| 1" | 1334 | 42 | 6 Pallets |
| 1.5" | 960 | 30 | 6 Pallets |
| 2" | 768 | 24 | 6 Pallets |
| 2.5" | 608 | 19 | 6 Pallets |
| 3" | 512 | 16 | 6 Pallets |
| 3.5" | 416 | 13 | 6 Pallets |
COMPLIANCES
- ASTM C1289 Type I, Class 1 and 2
- ASHRAE 90.1
- International Energy Conservation Code (IECC)
- International Building Code (IBC) Section 2603, Foam Plastic
- DrJ TER 1212-03 • CA Insulation Directory
- Tested per NFPA 285 to comply with IBC Section 2603.5.5
- Class A Flame Spread and Smoke Developed Indices per IBC Chapter 8, Interior Finishes
- Approved component for use within the ECOMAXci™ Wall Solution
- Water-Resistive Barrier (WRB) Component per ICC-ES AC71 (ASTM E331, AATCC Test Method 127)
- Air Barrier System Component ASTM E2357, CAN/ULC-S742 (A1)
- High-Velocity Hurricane Zone system, R-Trac (HVHZ)
- Florida Building Code Approval #FL16406
- Tested per TAS 201,202 and 203
- Tested per ASTM E1886 and E1996
- 1, 2, 3 or 4 hour Fire Rated Assemblies as shown in the UL Fire Resistance Directory
APPLICATIONS

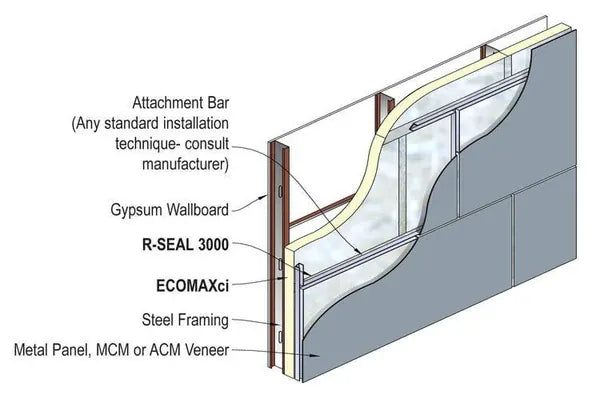

Exterior walls (Type I-IV): masonry walls; steel stud walls
| Product Length | 96" |
| Product Width | 48" |
| Brand | R-Max |
| Fire Rating | ASTM E84 |
| Flame Spread | 25 |
| Material Facing | Foil-Faced |
| Material Type | Polyiso |
| Product Density | 2.00 lb/ft3 (32 kg/m3) |
| Product Type | Rigid Board |
