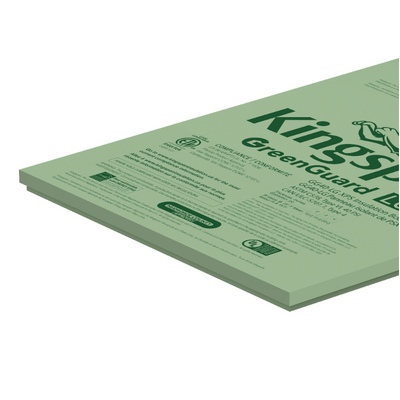

Kingspan GreenGuard GG60-LG XPS Insulation Board - 2in x 4ft x 8ft - (48 Boards)
Kingspan GreenGuard GG60-LG XPS Insulation Board - 2in x 4ft x 8ft - (48 Boards)
SKU:M48200TYP7
Est Delivery between 6th Feb and
12th Feb.
This product may be in short supply. To make an enquiry please call us on 786-224-0029 or email us at sales@4us-group.com.
How much will I need?
How much will I need?
We recommend adding 10% of additional product to the calculation to account for errors, damages, and obstacles in your project
Product Information
Kingspan GreenGuard GG60-LG XPS Insulation Board comprises closed–cell extruded polystyrene (XPS) with a minimum compressive strength of 60 psi. It has high water resistance and R–value of 5.0 per inch of thickness.
Kingspan GreenGuard LG XPS Insulation Board is made of synthetic materials that are generally recognized as not providing a food source for insects, fungus, mold, or mildew. It should always be properly installed and stored. Kingspan GreenGuard GG60-LG XPS Insulation Board is HCFC free.
48 Boards Per Pallet
1536 Sq Ft Per Pallet
Features & Properties
- R-value of 5.0 per inch of thickness
- Designed for high–load applications requiring insulation with minimum compressive strength of 60 psi
- GWP of lessthan 50
- Retains insulating properties over time
- Lightweight, durable...easy to use
| Property | Test Method | Result |
| Nominal Thickness (in) | 1 1/2, 2, 3 | |
| Nominal Board Width (ft) Nominal Board Length (ft) |
2 / 4 8 |
|
| Edge Profile |
Square Channeled |
|
| Property Type | ASTM C 578 | VII |
| Compressive Strength, Min. (psi@ 10% deflection) |
ASTM D 1621 | 60 |
| Water Absorption, Max. (% by volume) |
ASTM C 272 | 0.3 |
| Density, Min. (lb/ft) |
ASTM C 303 | 2.2 |
| Water Vapor Permeance (perm) |
ASTM E 96 (Dessicant Method) |
1.1 |
| Service Temperature, Max (°F) | 165 | |
| Thermal | ||
| Thermal Resistance, R-value (°F.ft.hr / Btu per in thick) |
ASTM C 518 (@75°F Mean Temperature) |
5.0 |
| Thermal Conductivity, k-value (Btu.in / hr.ft.ºF) |
ASTM C 518 (@75°F Mean Temperature) |
0.2 |
| Fire & Smoke | ||
| Flame Spread Smoke Developed |
ASTM E 84 / UL723 | 25 (Class A) 140 |
Technical Specifications
| Brand | Kingspan |
| Compressive strength | 60psi @10% deflection |
| Material type | XPS |
| Product density | 2.2 lb/ft3 |
| Product length | 8ft |
| Product type | Rigid Board |
| Product width | 4ft |
| R value | 5.0 |
| Thermal conductivity | 0.2 Btu.in/hr.ft2.ºF |
| Water absorption | 0.3 |
| Water vapor permeance | 1.1 |
