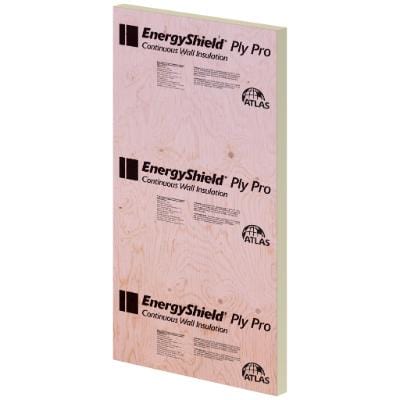

Atlas EnergyShield Ply Pro Glass-Mat Faced 4ft x 8ft Polyiso Insulation - All Sizes
Atlas EnergyShield Ply Pro Glass-Mat Faced 4ft x 8ft Polyiso Insulation - All Sizes
SKU:AESPP582.625481P
Est Delivery between 6th Feb and
12th Feb.
How much will I need?
How much will I need?
We recommend adding 10% of additional product to the calculation to account for errors, damages, and obstacles in your project
Couldn't load pickup availability
Product Information
| Thickness | Sq/Ft Per Pallet | Sheets Per Pallet | R Value |
| 1.625 In | 928 | 29 | R-6.8 |
| 2.125 In | 704 | 22 | R-9.8 |
| 2.625 In | 544 | 17 | R-12.9 |
| 3.125 In | 480 | 15 | R-16.1 |
| 3.625 In | 416 | 13 | R-19.3 |
| 4.125 In | 320 | 10 | R-22.5 |
| 4.625 In | 288 | 9 | R-25.8 |
| 1.75 In | 832 | 26 | R-6.9 |
| 2.25 In | 640 | 20 | R-9.9 |
| 2.75 In | 544 | 17 | R-13 |
| 3.25 In | 448 | 14 | R-16.2 |
| 3.75 In | 384 | 12 | R-19.4 |
| 4.25 In | 320 | 10 | R-22.6 |
The Atlas EnergyShield Ply Pro Glass-Mat Faced Polyiso Insulation offers an innovative solution for thermal and fire protection in both commercial and residential buildings. This insulation is crafted from glass-mat faced polyisocyanurate, providing superior resistance to heat flow and a Class A fire rating, ensuring it meets stringent safety requirements. Its versatility makes it suitable for a wide range of applications, including use in exterior cavity walls, under various claddings, and in environments that require robust fire-resistant materials.
Designed to comply with multiple building standards such as ASTM C1289, Type V, and the International Building Code (IBC), the Atlas EnergyShield Ply Pro is an ideal choice for new constructions and renovations. It supports UL Standard 263 (ASTM E119) for hourly rated walls, making it a reliable option for structures demanding high-performance fire safety measures. Additionally, its compatibility with different cladding materials like brick, stucco, and metal panels allows for flexibility in architectural designs, enhancing both the aesthetic and functional aspects of building exteriors.
Performance-wise, the Atlas EnergyShield Ply Pro excels in durability and environmental resistance. Its low moisture vapor transmission rate, as tested by ASTM E96, ensures minimal water absorption, maintaining its integrity and insulative properties over time. The product’s dimensional stability under extreme temperatures, ranging from -100°F to +250°F, demonstrates its capability to withstand severe weather conditions without degrading. This insulation not only provides exceptional thermal resistance but also contributes to the overall energy efficiency of buildings, reducing heating and cooling costs.
Key Features:
- Class A Fire Rating: Ensures top-tier fire resistance and safety in accordance with UL Standard 263 and other fire safety codes.
- Wide Range of Applications: Suitable for use with wood or steel studs, concrete constructions, and various cladding types including brick and metal panels.
- Low Moisture Vapor Transmission: Demonstrates excellent moisture resistance, preventing water uptake and promoting long-term durability.
- Dimensional Stability: Maintains its physical integrity under extreme temperature fluctuations, ensuring consistent performance.
- Eco-Friendly: Enhances energy efficiency, contributing to reduced energy consumption and lower utility bills in buildings.
Pros & Cons
Pros- Offers superior thermal and fire protection, meeting stringent safety requirements.
- Complies with multiple building standards, making it suitable for new constructions and renovations.
- Compatible with various cladding materials, allowing for flexibility in architectural designs.
- Excels in durability and environmental resistance, with a low moisture vapor transmission rate and dimensional stability under extreme temperatures.
- Contributes to the overall energy efficiency of buildings, reducing heating and cooling costs.
- May be more expensive than traditional insulation materials due to its advanced features and benefits.
- Installation might require professional expertise due to compliance with various building standards.
- Its performance could be affected if not properly installed or if exposed to conditions beyond its specified temperature range.
Frequently Asked Questions
The Atlas EnergyShield Ply Pro is crafted from glass-mat faced polyisocyanurate, a material known for its superior resistance to heat flow.
This insulation has a Class A fire rating and complies with multiple building standards such as ASTM C1289, Type V, the International Building Code (IBC), and UL Standard 263 (ASTM E119) for hourly rated walls.
Its versatility makes it suitable for a wide range of applications, including use in exterior cavity walls, under various claddings, and in environments that require robust fire-resistant materials. It can be used with wood or steel studs, concrete constructions, and various cladding types including brick and metal panels.
The Atlas EnergyShield Ply Pro excels in durability and environmental resistance. Its low moisture vapor transmission rate ensures minimal water absorption, maintaining its integrity and insulative properties over time. It also has dimensional stability under extreme temperatures, ranging from -100°F to +250°F, demonstrating its capability to withstand severe weather conditions without degrading.
This insulation not only provides exceptional thermal resistance but also contributes to the overall energy efficiency of buildings, reducing heating and cooling costs.
Technical Specifications
| Brand | Atlas |
